Straight drop blinds
Parts of a Straight Drop Blind
Before choosing your outdoor blind, take a moment to review the components below to better understand its essential features.
Idler End Bracket
This bracket mounts to the wall or post on the non-drive side of your blind. It supports the pivot pin and roller tube, allowing the blind to rotate smoothly while keeping the system level and securely anchored in place
Gearbox and Bracket
Located on the control side, this heavy-duty unit houses the winding mechanism that raises and lowers your blind. The bracket mounts securely to your structure, while the gearbox connects to the crank handle loop for effortless manual operation

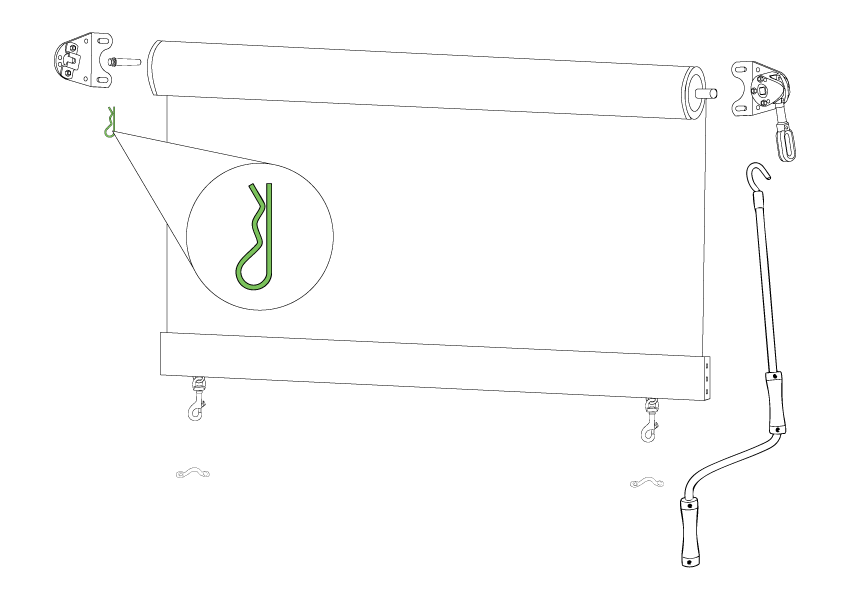

R-Clip
This small but vital safety pin secures the blind into the mounting brackets. Inserted through the pivot pin during installation, the R-Clip locks the mechanism in place, preventing the blind from accidentally slipping out of the bracket during operation or wind
Pivot Pin
The Pivot Pin slides into the idler end of the roller tube and sits firmly within the Idler End Bracket. It acts as the central rotation point for the non-drive side, ensuring your blind rolls evenly and stays centered without wobbling
Blind Assembly
This is the core of your system, consisting of your chosen outdoor fabric rolled onto a sturdy keyway roller tube. It comes pre-assembled with the square drive end and provides the structural shade and weather protection for your space
Bottom Rail
The Tear Drop Bottom Rail finishes the lower edge of the fabric, adding essential weight to keep the blind hanging straight. It provides a mounting point for the tie-down clips, ensuring the fabric remains taut and stable
Saddle
Mounted to the floor, wall, or post, the Saddle acts as the permanent anchor point for your blind. It works with the snap clips to secure the bottom rail when the blind is extended, preventing it from swinging in the wind
Snap Clips
Also referred to as dog clips, these durable fasteners connect the bottom rail to the saddles. They allow you to quickly lock the blind into position when it is fully lowered, keeping the fabric tensioned and secure
Crank Handle
This detachable portable handle hooks into the gearbox eyelet to operate the blind. Supplied at a standard 1250mm length, it provides easy leverage to wind the blind up or down and can be stored away when not in use
Straight drop blinds
Mounting Methods
Before you take any measurements, you need to decide whether you want the straight drop blind mounted on the wall or mounted inside the reveal/recess. See the pictures below for illustrations.
Mounted on wall
Face Fit installation mounts the blind to the front of your posts or wall. This method ensures maximum coverage by overlapping the opening, significantly reducing light gaps and simplifying installation on uneven surfaces.
Mounted in the window reveal
In-Reveal installation fits the blind snugly inside your window recess or between posts. This option delivers a clean, flush finish perfect for modern spaces, requiring precise measurements and sufficient depth for the mounting brackets.
Next Step
Now that you know what the parts of a Straight Drop Blind are, let's move on to the next step.
